- Spindle housings are modified to incorporate rotary encoders and DC Drives;
- Pinion Spindle DC Vector Drive capable of 0 ~ 1600 RPM ;
- Gear Spindle with GEI Systems modifications to integrate a frameless high performance DC motor with brake capability up to 100 ft-lbs of torque.;
- Optical Encoders Integrated in each spindle through proprietary hubs and adapters and GEI System electronics are capable of delivery a resolution of better than 1 micro-radians.
Vibration systems (including):
- Accelerometers and Signal conditioner
Acoustic Systems (including):
- High performance microphone
- Signal conditioner
Optional Equipment
Digital Readouts for Vertical and Horizontal Settings and Gear Cone Distance;
"CNC" control for "H" parameter to motorize the pinion cone distance;
Video Feedback (including):
- Miniature camera with articulated mounting bracket
- Video board to display the image on the computer screen
This retrofit is based on the frame of Gleason 17A manual Tester
Gleason 17A is a TradeMark of Gleason Corp

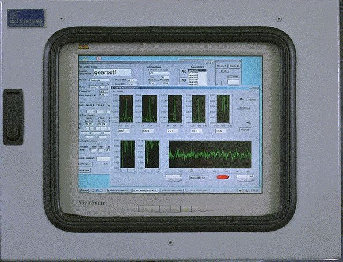

Computer screen with test results
GearSpindle with integrated DC brake.
